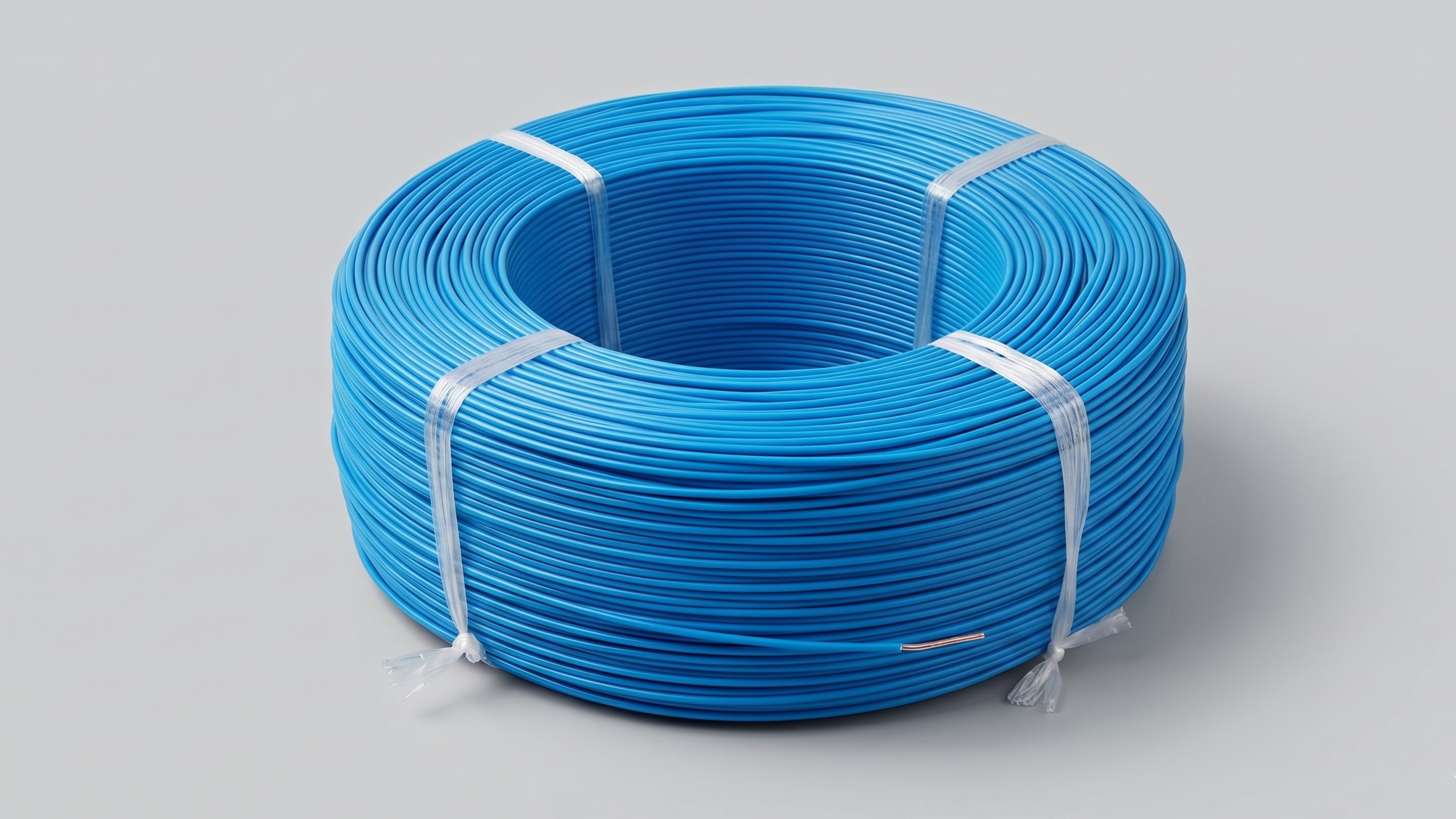

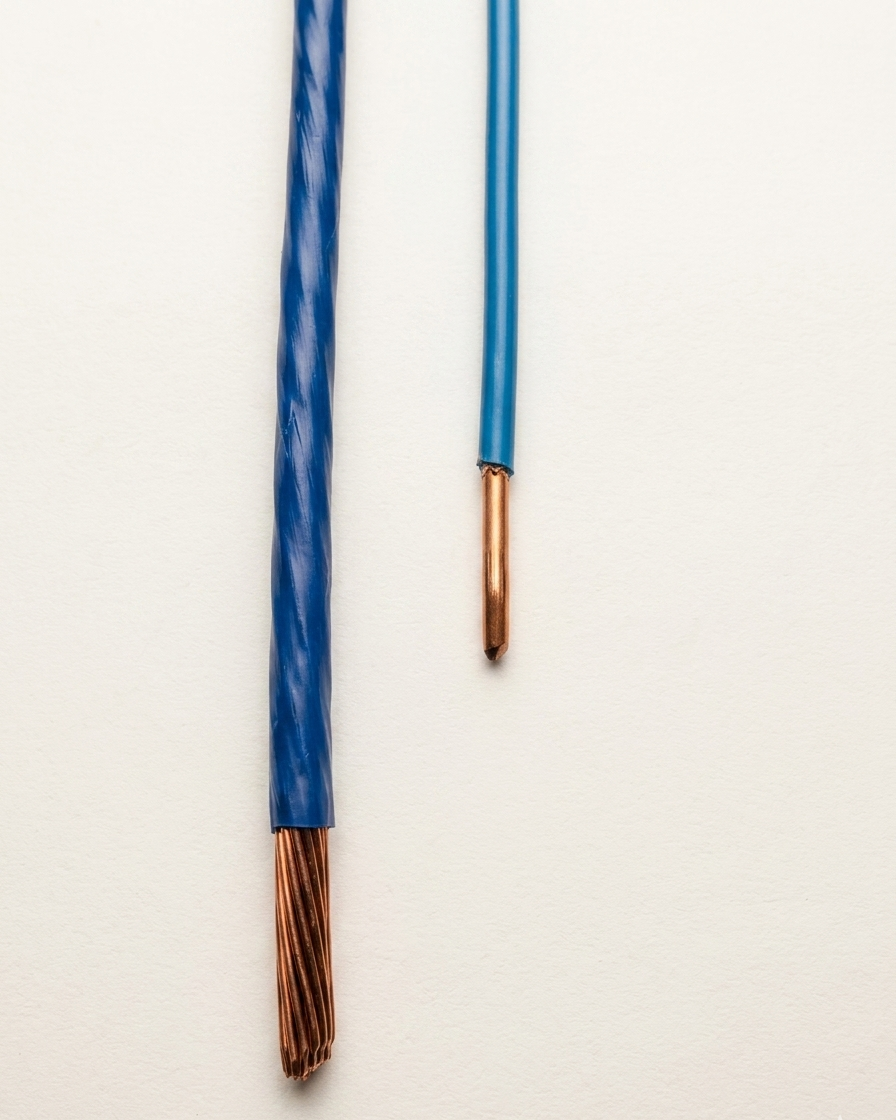

REC High-Performance Series
High-performance submersible winding wire designed for extreme temperatures (-50°C to +150°C) with zero water absorption
Primary Uses: Advanced wires for harsh environments requiring resistance to saline, oil, and extreme cold/heat
Key Specifications
- Operating Range: Handles extreme temperatures from -50°C to +150°C at voltages up to 3 kV
- Waterproofing: 'ZERO' mg/cc water absorption throughout its entire life cycle
- Insulation Type: Uses composite polymers and fluoropolymers with an RTI thickness of 175 to 350 microns
- Dielectric Strength: Offers high breakdown strength of >50 KV/mm and typical breakdown voltage of 10-12 KV
- Chemical Resistance: Excellent against weather, water, oil, solvents, and saline environments
- Efficiency: Capable of a conductor current density of >20 amp per sqmm
