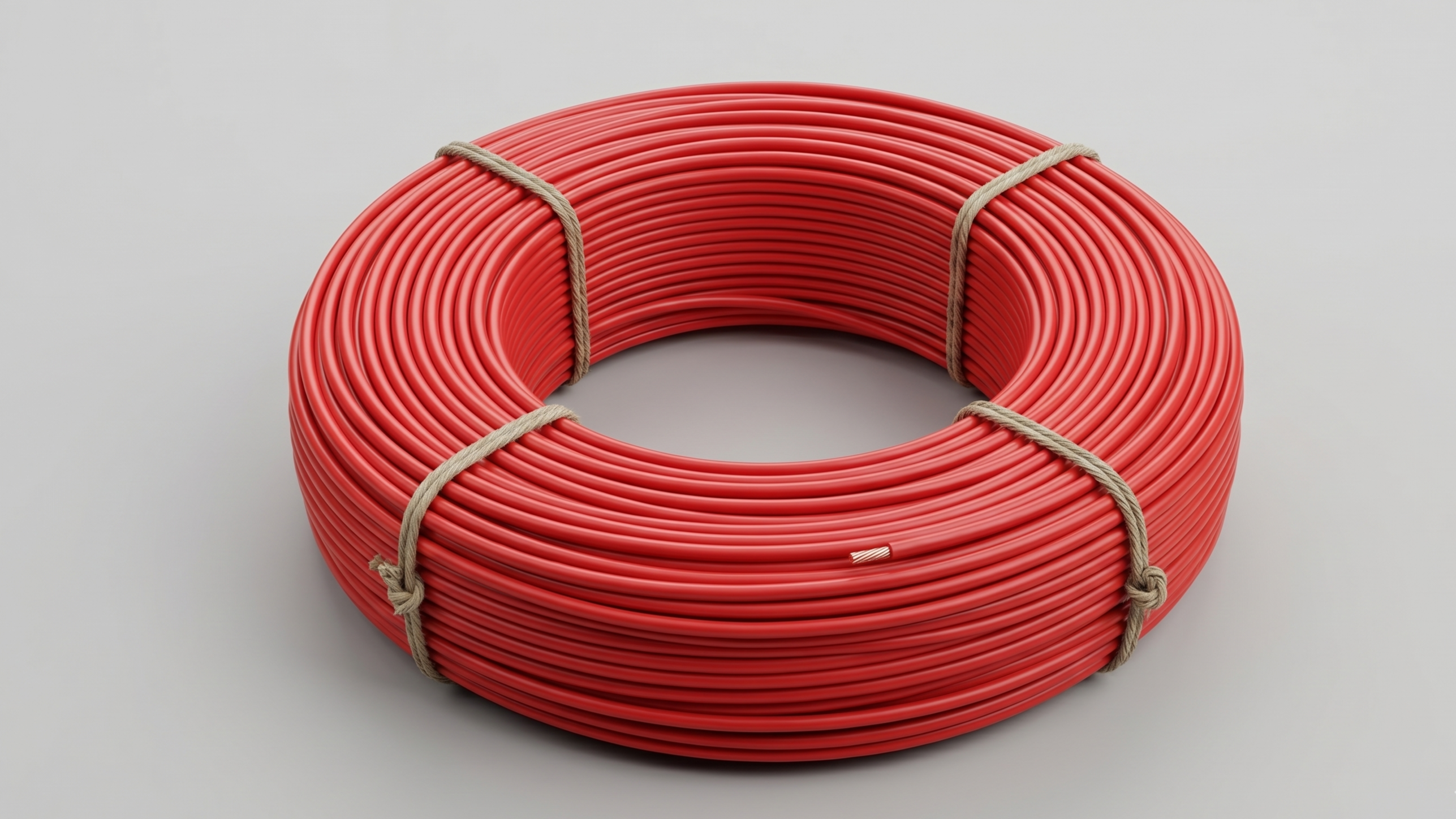

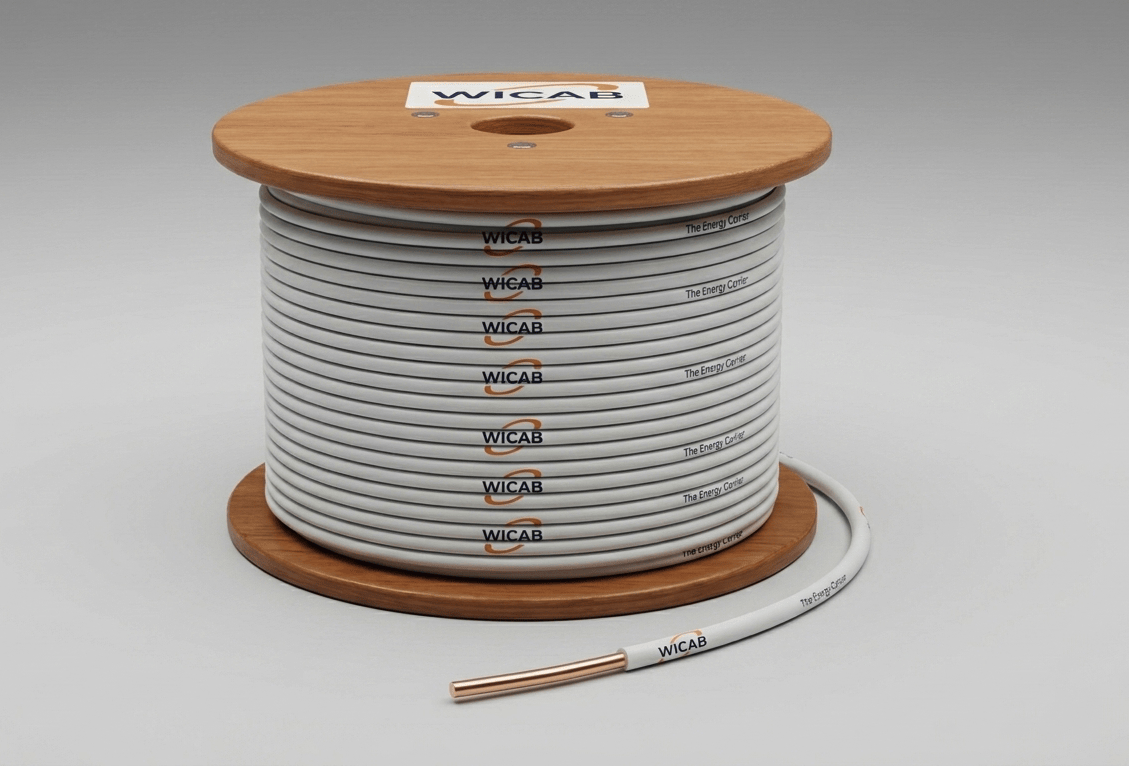

PVC Winding Wire
Standard Heat-Resistant PVC insulated winding wire for 90°C submersible applications and voltages up to 600V
Primary Uses: Ideal for standard submersible needs
Key Specifications
- Thermal Limits: Rated for submersible operation up to 90°C with no cracks during heat shock tests at that temperature
- Voltage Capacity: Designed for a working range of 600V (+10%) at 50-60 Hz
- Material Construction: Features Special Grade HR-PVC insulation over a solid annealed bare copper conductor
- Mechanical Integrity: Provides a tensile strength of 225 N/sq mm for the conductor and >50 N/mm² for the insulation
- Breakdown voltage ~5 kV
- Electrical Safety: Maintains an insulation resistance of >2000 M-ohm and dielectric strength of >50 KV/mm
- Size Availability: Standard production range covers conductor diameters from 1.0 mm to 3.5 mm
